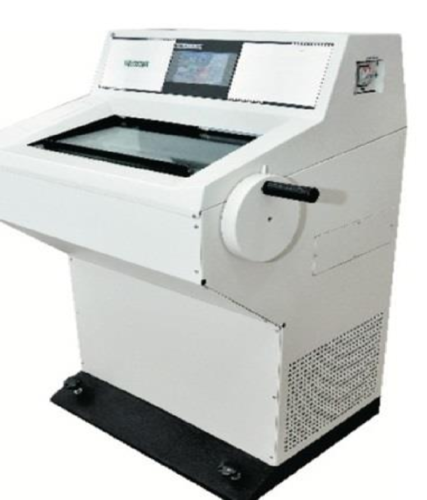

Mannual Cryostat Microtome

Mannual Cryostat Microtome Specification

Accuracy
1C Temperature Control

Voltage
220V

Capacity
24 Specimens

Frequency
50 Hz

Automation Grade
Manual

Model No
MCM-24

Feature
Fast Freezing, Easily Removable Microtome for Cleaning, Low Maintenance

Measurement Range
Thickness setting 1 - 25 m

Power Source
Electric (AC)

Core Components
Specimen Holder, Microtome Blade, Cooling Chamber

Temperature Range
-35C to +5C

Equipment Materials
Powder coated steel outer, Stainless steel interior

Type
Manual Cryostat Microtome

Usage
Laboratory, Histopathology, Medical Research

Display Type
Analog Scale

Dimension (L*W*H)
660 x 640 x 1130 mm

Weight
Approx. 85 kg

About Mannual Cryostat Microtome

SALIENT FEATURE

ERGONOMIC DESIGN
EASY TO READ LCD SCREEN
RAPID REFRIGERATION MODE ALLOWS DESIRED TEMPERATURE DROP IN 120MIN
WORKING AREA IS EASY TO CLEAN AND DISINFECT

TECHNICAL SPECIFICATION

Sectioning thickness range 1m-30m in 1mincrements
Freeze shelf lowest Temperature -350C
Cooling down time to -40C:120 min
Easy to operate control panel
Spacious ,stainless steel cryochamber
Antiglare illumination
Automatic defrostings
Built in drain age system
Easy mobility with heavy duty castors
Hermetically sealed and thermostatically control refrigeration

Precision and Versatility in Sectioning

With an adjustable section thickness from 1 to 60 m and a highly accurate analog temperature control, the Manual Cryostat Microtome MCM-24 enables fine-tuned tissue preparation for diverse laboratory applications. Its universal blade holder and automatic/manual defrost options further enhance operational flexibility and convenience.

Robust and Safe Laboratory Operation

Built with a powder-coated steel body and stainless steel interior, this cryostat microtome delivers lasting durability. The integrated cryochamber door safety interlock and noise level below 60 dB(A) ensure a safe and comfortable working environment. Its eco-friendly refrigerant and energy-efficient compressor contribute to responsible, sustainable usage.

FAQs of Mannual Cryostat Microtome:

Q: How do I adjust the section thickness on the Manual Cryostat Microtome MCM-24?

A: The section thickness can be set anywhere from 1 to 60 m using the analog scale, with adjustments available in 1 m increments. Turn the thickness adjustment knob to your desired setting before sectioning your specimen.

Q: What benefits does the automatic and manual defrost system provide?

A: The combination of automatic and manual defrost options helps maintain a frost-free chamber, ensuring clear visibility and consistent performance. This dual system allows users to select the most convenient method for various operational needs.

Q: When should the microtome be cleaned, and how is the process made easier?

A: It is recommended to clean the microtome regularly, especially after sectioning multiple or diverse specimens. The MCM-24 features an easily removable microtome section, simplifying cleaning and reducing downtime, which helps maintain optimal performance.

Q: Where can the Manual Cryostat Microtome be installed for the best performance?

A: For optimal results, the cryostat microtome should be installed in a dust-free, indoor environment with an ambient temperature between 1530C. Maintaining these conditions supports accuracy in sectioning and temperature control.

Q: What safety features are included with this equipment?

A: The device incorporates a cryochamber door safety interlock to prevent accidental access during operation. This feature ensures user safety and reduces the risk of environmental exposure to low temperatures.

Q: How does the eco-friendly refrigerant and energy-efficient compressor benefit laboratory operations?

A: Utilizing an eco-friendly refrigerant and a hermetically sealed, energy-efficient compressor reduces environmental impact while maintaining reliable cooling performance. This efficiency lowers energy costs and supports sustainable laboratory practices.
