Laminar Air Flow

Laminar Air Flow Specification

Filters
HEPA Filter (99.97% at 0.3 micron), Pre-Filter, Activated Carbon Filter

Connectivity Type
Standard AC Socket

Frequency
50 Hz

Dust
Micro Particle Free

Features
UV Light, Fluorescent Light, Gas Cock, Power Socket

Filtration Property
99.97% Filtration Efficiency at 0.3 micron

Installation Type
Plug & Play

Pressure Range
0.3 to 1.0 inch WG

Output
Particle free air

Material
Stainless Steel (SS 304/316)

Flow Rate
0.5 m/s to 1 m/s

Efficiency (%)
99.97

Energy Consumption
Low

Equipment Type
Horizontal / Vertical Laminar Air Flow

Dust %
0.01%

Control System
Microprocessor Based Control Panel

Color
White & Blue

Humidity %
RH Up to 70%

Maintenance Type
Easy to Service and Replace Filters

Application
Laboratory, Tissue Culture, Pharma, Research

Noise Level
< 65 dB

Hole Size
Standard as per equipment type

Ventilation
In-built Air Blower

Automatic Grade
Automatic

Capacity
2 to 4 feet working area

Power
220 W

Voltage
220V AC

Dimension (L*W*H)
1200 x 600 x 600 mm

Weight
60 kg

Glass Shield
Tempered Safety Glass

Service Support
Onsite Warranty & AMC Available

Air Flow Direction
Horizontal / Vertical

Phase
Single Phase

Caster Wheels
Heavy Duty Lockable Wheels

Recommended Application Area
Microbiology, Hospital, Electronics, Food Industry

Table Top
Stainless Steel with Curved Corners

Illumination Type
UV and LED Lighting

Packing Type
Wooden Crate / Carton

Inbuilt Timer
Yes

Vibration Level
< 2.5 µm

Laminar Air Flow Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

About Laminar Air Flow

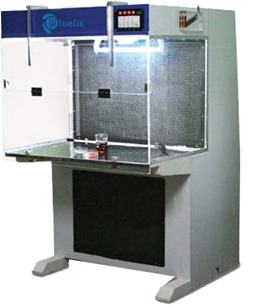

BTI178 LAMINAR AIR FLOW

Blower unit has AUE or equivalent motor and is dynamically balanced with minimal sound & vibration level. Fluorescent lighting is also provided. A suitable UV tube is provided for sterilization. An acrylic block type manometer to measure static pressure in the chamber has been installed. Two way gas tap for gas line has also been provided.

Size Specifications :

Size of Working chamber	Size of HEPA filter	No. of HEPA filter	Illumination
2x2x2	2x2x6"	1	1x20Watt
3x2x2	3x2x6"	1	1x20Watt
4x2x2	4x2x6"	1	2x20Watt
6x2x2	3x2x6"	2	2x40Watt
8x2x2	4x2x6"	2	4x40Watt

Salient Features :

Whole cabinet made of commercial board & laminated with sunmica.
Whole cabinet made out of stainless steel sheet duly smooth polished enhances the life of cabinet.
Whole cabinet made out of Mild Steel sheet duly smooth polished enhances the life of cabinet.

Superior Air Purity and Filtration

This unit utilizes HEPA, pre, and activated carbon filters to remove over 99.97% of particles as small as 0.3 microns, ensuring a clean workspace for critical applications. The output is guaranteed micro particle free, with a dust percentage of only 0.01% and low vibration levels.

Advanced Illumination and Safety Standards

Inbuilt UV and LED lighting provide both sterilization and visibility, while the tempered safety glass protects users and samples. The table top is crafted from SS 304/316 stainless steel with curved corners, enhancing safety and simplifying maintenance.

Versatile and User-Friendly Design

Designed for horizontal or vertical air flow, this laminar unit accommodates laboratory, hospital, electronics, and food industry settings. Heavy-duty lockable caster wheels ensure mobility without compromising stability, and the intuitive microprocessor-based control panel allows effortless adjustments and monitoring.

FAQs of Laminar Air Flow:

Q: How does the Laminar Air Flow unit benefit laboratories and industrial environments?

A: The Laminar Air Flow provides a sterile, particle-free working area essential for microbiology, tissue culture, pharma research, electronics assembly, and food industry processes, reducing contamination risk and enhancing experimental accuracy.

Q: What type of illumination is included in the equipment and how is it useful?

A: This system features both UV and LED lighting, which ensures effective sterilization as well as optimal visibility for users while handling sensitive procedures or working with delicate samples.

Q: When should HEPA and other filters be replaced, and how is maintenance performed?

A: Filter replacement frequency depends on usage intensity, but a periodic check every six months is recommended. The units design allows filters to be easily serviced and replaced, with onsite service support and annual maintenance contracts available.

Q: Where is this Laminar Air Flow suitable for installation and what are its main application areas?

A: It is ideal for installation in laboratories, hospitals, research facilities, pharma, electronics assembly, and food-processing environments owing to its plug-and-play design, versatile airflow, and compliance with strict safety standards.

Q: What is the process for installation and starting operation?

A: Installation is straightforward due to its plug-and-play nature; simply unpack from the wooden crate or carton, position as needed, plug into a standard AC socket, and use the microprocessor control panel to initiate operation.

Q: How does the inbuilt timer and control panel enhance user experience?

A: The microprocessor-based control panel and inbuilt timer make it easy to customize operational periods, automate illumination, and monitor performance, streamlining workflow while ensuring consistent environmental conditions.

Q: What are the primary advantages over other air purification systems?

A: This unit offers superior filtration with 99.97% HEPA efficiency, horizontal and vertical airflow flexibility, robust construction, low energy consumption, quiet operation (<65 dB), inbuilt sterilization, heavy-duty mobility, and reliable onsite support in India.
